Elevators are usually housed in elevator shafts which, depending on the type of building, extend from the basement to the roof of the building. Elevator shafts fulfill various functions, such as providing an unrestricted connection between several floors, soundproofing the elevator drives and stabilizing the building. High demands are placed on elevator systems in terms of fire protection so as not to endanger safety in the elevator: this applies to the health of people as well as to the safety of the goods being transported. Elevators are also considered a high-risk maintenance application where appropriate safety standards are required to reduce the risk of injury to service technicians.
In order to meet these requirements, we at WAGNER develop specific fire protection solutions to protect people and infrastructure.
RISK ANALYSIS
In the event of a fire, chimney and piston effects in the elevator shaft promote the spread of heat, smoke and toxic gases, which can spread rapidly through the floors. In the case of the chimney effect, the vertical shafts and the shaft ventilation of the elevator systems promote the described spread; the piston effect promotes the spread through the movement of the elevator cabin itself and the resulting pressure change in the elevator shaft. Elevator systems also have a large number of electrical cables. If electrical cables are damaged or faulty, smoldering or cable fires can occur. The large number of moving parts can also lead to defects, overheating and, in the worst case, fire.
Particularly challenging: in the event of a fire, an elevator is generally not automatically shut down. People can still be transported and are therefore in acute danger of death. The difficult accessibility of the elevator shafts makes it harder to maintain all the components inside. They are therefore subject to high levels of dust and dirt.
PROTECTION GOALS
What are your protection goals?
BETTER SOLUTIONS IN FIRE PROTECTION
Very early fire detection, as made possible by the systems of our TITANUS® product family, provides the decisive time advantage that can save lives. The earlier a fire is detected, the faster suitable countermeasures can be initiated and greater damage can be prevented.

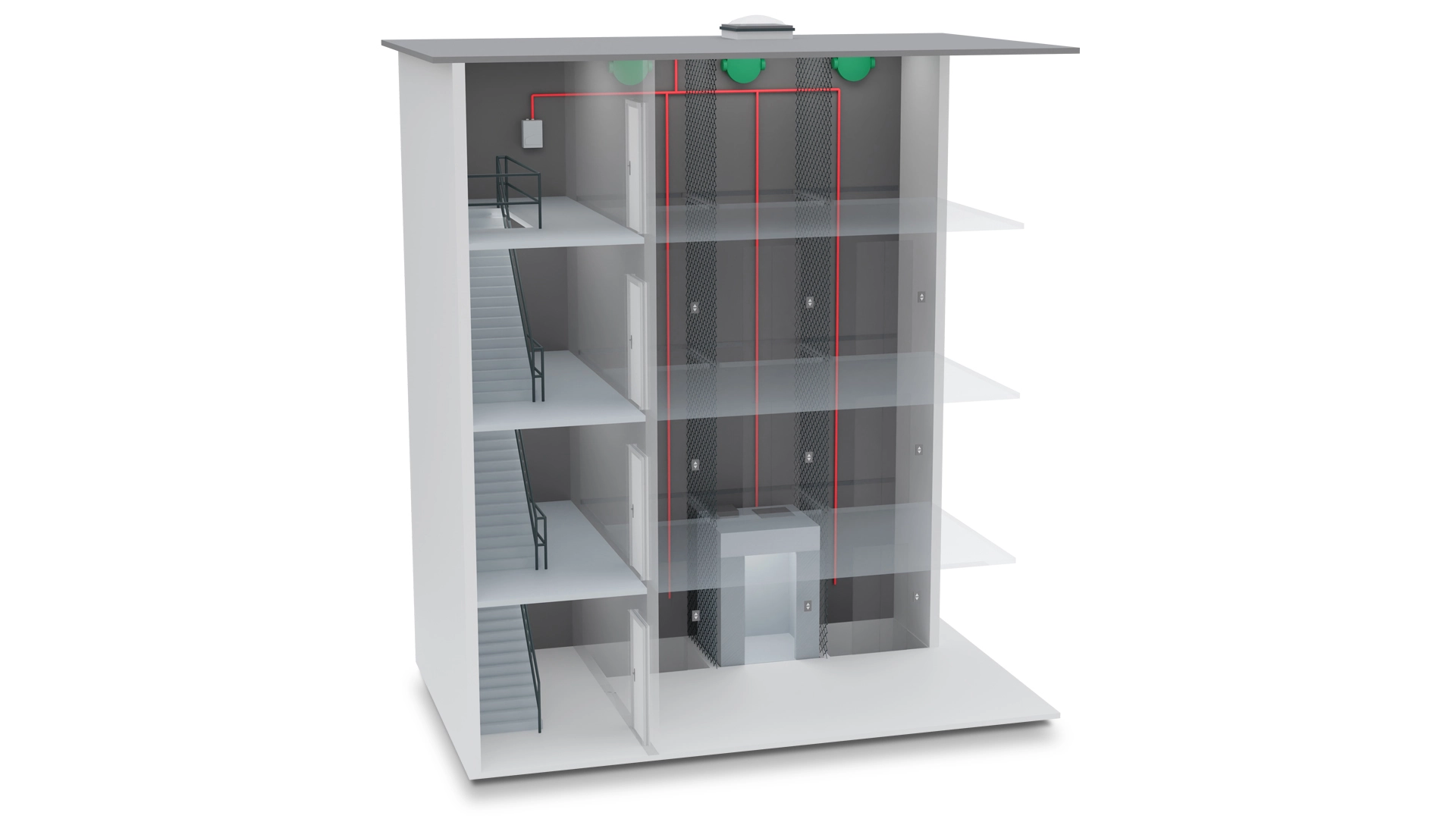

TITANUS® aspirating smoke detectors are used in numerous elevator systems and elevator shafts worldwide and set new standards with their reliable early fire detection. Our early fire detection systems are installed outside the elevator shaft. This means that they are easily accessible for maintenance purposes at all times without having to interrupt the operation of the elevator system. Our aspirating smoke detectors comply with the relevant safety standards to reduce the risk of injury to service technicians.
BENEFITS
Very early and reliable fire detection for the earliest possible countermeasures to be taken.
Proven fire pattern recognition for detecting deceptive scenarios.
Maximum interference immunity thanks to patented air flow monitoring.
Easy accessibility enables maintenance without interrupting operation and quick diagnostics without technical aids.
Graduated product portfolio and simple retrofitting and conversion when requirements change.
Can be used in different monitoring areas and various detector variants with an extensive range of accessories.
Audits by UL, FM and VdS as well as worldwide certifications prove compliance with the highest safety standards.
National standards and guidelines for fire detection in elevator systems must be taken into account. If there are no legally binding regulations, the project planning of fire detectors in elevator systems is generally based on existing guidelines for other applications (room monitoring, monitoring of high-bay warehouses).
